Wagon cistern RENFE Rfv 304.910

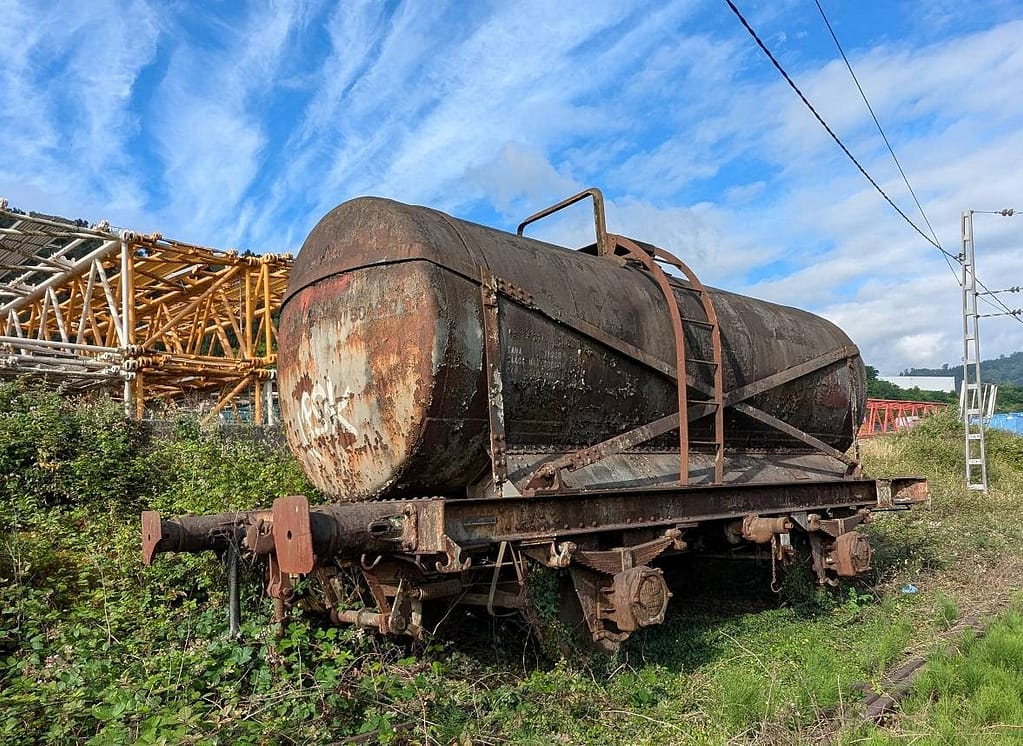

Built between 1945 and 1946 for water transport between stations, these forty-eight tank cars were eventually adapted for transporting diesel fuel for diesel locomotives. In 1988, the Rfv 304.910 was assigned to the Beasain station as a fuel reserve for shunting locomotives, a task it maintained until the 1990s, when it was abandoned.

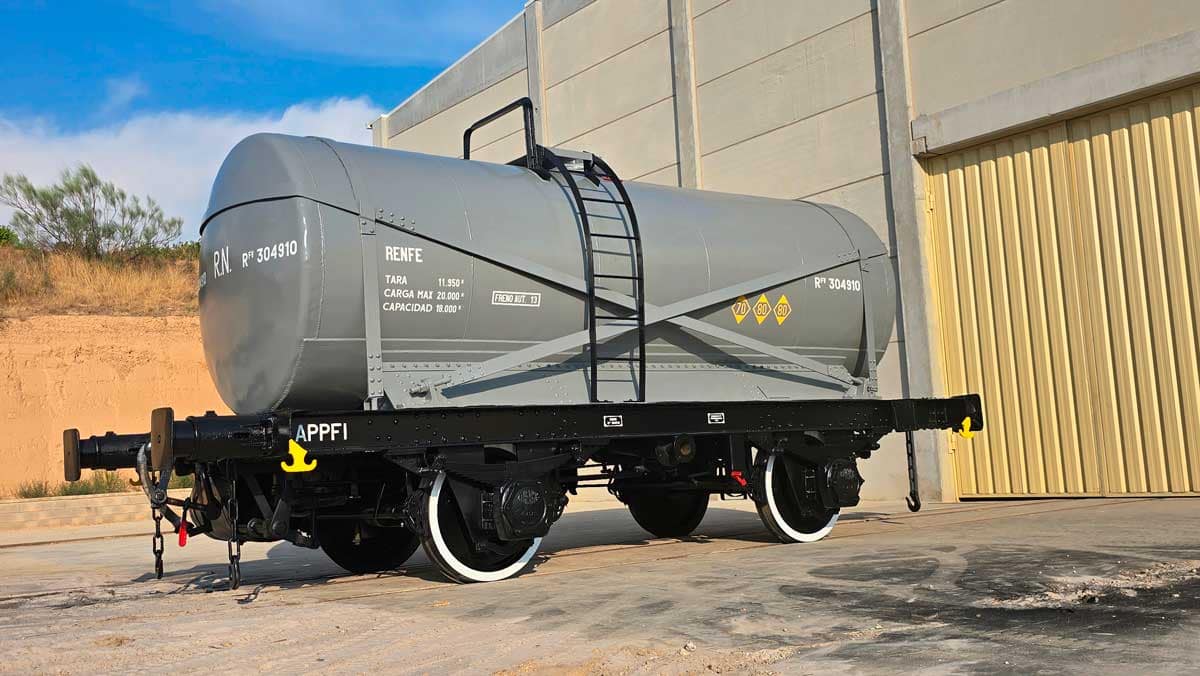

In 2023, the FPPFI requested it from ADIF, which transferred it to the Mora la Nova Museum the following year. In October 2024, it arrived at the Museum and immediately underwent a complete functional restoration, becoming part of the collection of preserved vehicles.

Technical data sheet

Any construction1945-1946
ConstructorHeirs of Ramón Múgica
SeriesRfv.304.901 to 304.948
CompanyRENFE
Track width (mm)1.668
Axis layout2 Axes
Length (mm)7.700
Height (mm)3.710
Width (mm)2.850
Weight (kg)12.160

Client: FPPFI

Restoration Types: Functional

Any: 2024
